Description

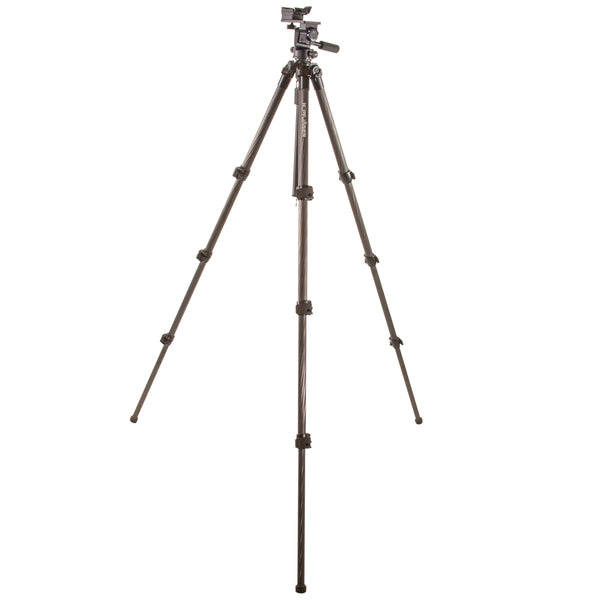

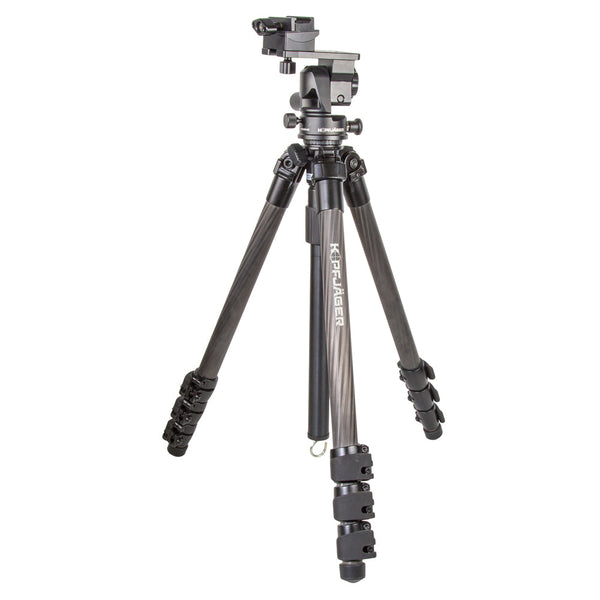

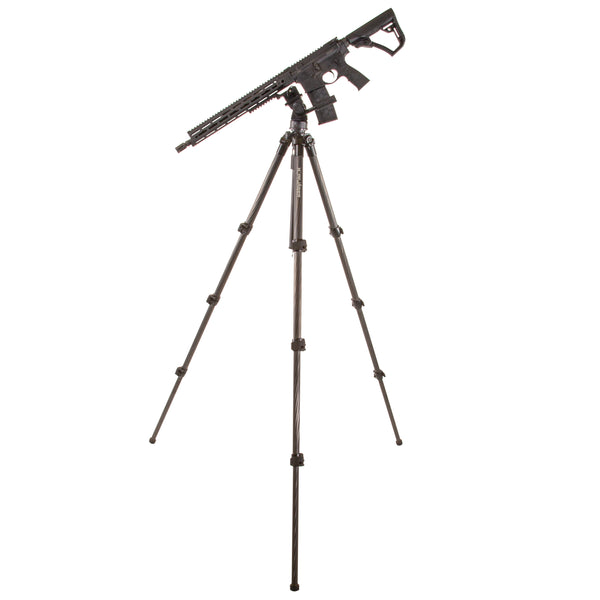

The Kopfjäger K800 Tripod and Reaper Rail Kit improves stability, enhances accuracy and eliminates fatigue for LEO’s and precision shooters. Weighing just 3.85 lbs., the K800 Tripod is crafted of a lightweight carbon-fiber composite and features 4-level leg extensions with lever locks. The Reaper Rail boasts a robust pan and tilt range, 21° up and 87° down, as well as up to 11° of cant adjustment in each direction. The Reaper Rail accommodates Picatinny rails and is also available for Arca Swiss applications.
US Pat. D772372S1
Included in Package
- K800 Tripod
- Tripod Case
- Camera thread adapter
Product Downloads
Features
Reaper Rail:
- Smooth Pan/tilt
- Heavy Duty Construction
- Mounts directly to picatinny rail
- User friendly offset grip
- Locking cant adjustment
- Stable platform for long range prevision
- Assembled in the USA
Tripod
- 3 position angle lock legs
- Up to 20lbs. load weight
- Reversible center column
- Heavy duty lever lock legs
- Lightweight carbon fiber
Other Features
- Unshakeable stability for precision shooting and hunting
- Ultra-Lightweight carbon-fiber tripod weighs just 3.85 lbs.
- Designed to eliminate fatigue
- Tough enough for harsh environment
- Smooth 360° pan and tilt range of 109° (21° up and 87° down)
- Cant adjustment range of 22° (11° each direction)
- Off-set design for accessories and magazine access
- Compatible with Picatinny rail systems
- Optional Arca-Swiss compatibility
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Maximum operating height, in/mm | 65 / 1650 - Tripod |
|---|---|
| Minimum operating height in/mm | 7.4 / 194 - Tripod |
| Maximum center column extensions | 52.2 / 1325 - Tripod |

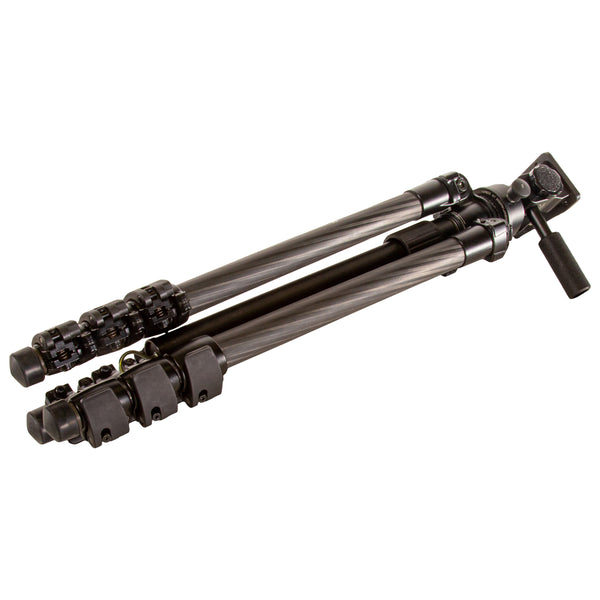

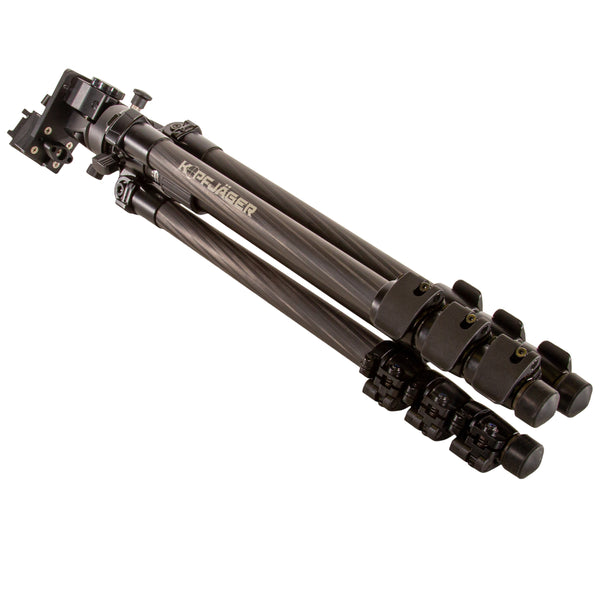

| Folded length | 18.9 / 480 - Tripod |
| Number of leg sections | 4 - Tripod |
| Maximum load | 20 lbs. - Tripod |
| Leg Lock type | Lever Lock - Tripod |
| Material Tripod | Carbon fiber |
| Weight | 3.85 / 1746 - Tripod lbs/g |
| Dimensions | 6.84 x 6.04 x 6.57 / 174 x 153 x 167 - Reaper Rail in/mm |
| Vise width range | 1.57 - 2.78 / 40 - 71 - Reaper Rail in/mm |
| Material Reaper | Aluminum - Reaper Rail |
| Weight Reaper | 1.97 / 892 - Reaper Rail lbs/g |
